commercial kitchen oil fume remove electrostatic precipitator esp bbq coffee roaster smoke filter

  • 1 - 49 Sets
    $539.98
  • 50 - 99 Sets
    $512.98
  • >=100 Sets
    $485.98
Model Number:
JW40-gfre
Rated Air Flow (M3/Hr):
4000
Lead Time:
Quantity(Sets) 1 - 5 6 - 20 21 - 50 >50
Est. Time(days) 7 15 25 Negotiable
Customization:
Customized logo (Min. Order: 20 Sets)
Customized packaging (Min. Order: 20 Sets)

More

Graphic customization (Min. Order: 20 Sets) Less
Samples:
$550.00 /Set | 1 Set (Min. Order) | Buy Samples
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Applicable Industries:
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, farms, restaurant, HOME USE, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Advertising Company
After Warranty Service:
Video technical support, Online support
Local Service Location:
VIET NAM, Thailand
Showroom Location:
VIET NAM, Thailand
Video outgoing-inspection:
Provided
Machinery Test Report:
Provided
Marketing Type:
New Product 2020
Warranty of core components:
1 YEAR
Place of Origin:
Guangxi, China
Brand Name:
Juwei
Purify Efficiency:
98
Warranty:
1 YEAR
After-sales Service Provided:
Video technical support
Product name:
Electrostatic air purifier
Product advantages:
High-efficiency electric field
Emissions Way:
Low altitude
Air volume(m3/h):
4000
Size (L*W*H)mm:
543*862*702
Flange size:
584*463
Electric field QTY:
1
High voltage power QTY:
1
Power rating(W):
48
Net Weight:
52
Core Components:
electrostatic
Supply Ability
Supply Ability:
500 Unit/Units per Month
Packaging & Delivery
Packaging Details
Plywood crate with polyfoam lining, packing by wooden box.
Port
Nanning
Lead Time :
Quantity(Sets) 1 - 5 6 - 20 21 - 50 >50
Est. Time(days) 7 15 25 To be negotiated
Products Description
Juwei electrostatic air cleaner is a filtration device that removes fine particles such as oil, fume, lampblack, dust and smoke, which caused by cooking&grilling&lasering&hot-heating...ect.  Using the force of high voltage electric field, charged the particles to positive and negative potemtial, then they will be collected by the negative/positive collectors, turn dirty air into clean air. After tested, our machine can take away up to 98% of particles.
Model No.:
JW40
Air volume:
4000m3/h
Filtration efficiency:
98%
Input power:
220/230V
Power rate:
48W

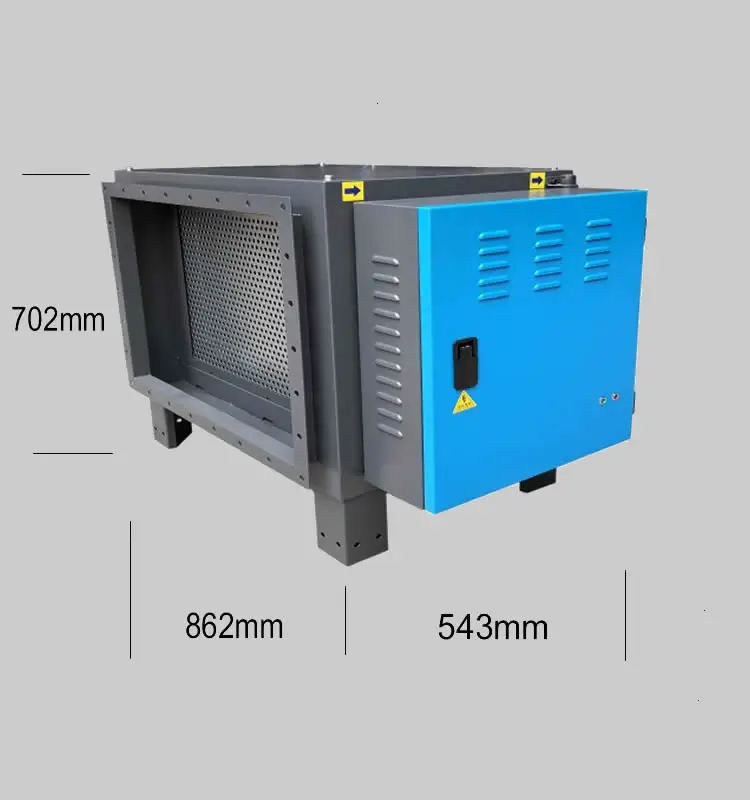

Size:
862*543*702mm
Our Advantages



High-voltage
Voltage is an important element, it should be as high as possible. To ensure the maximum particle ionisation and capture efficiency, both of our ioniser and collector cell use very high voltage.







High-efficiency electric field
Maximum ionised grease and smoke particles as they travel over ionising electrodes, so they can be trapped when travel through the
parallel plates of the collector cell.




Inside cooling fan
There's a cooling fan below the control box, which to cool down temperature, avoid breakdown.



Auto power cut-off device
Equipped with open the door and power off device, when maintenance door is opened, high voltage power supply automatically cut
off, and electrostatic power supply control system with over voltage protection and short circuit protection, stable and rest
assured.
Application &Installation
The ESP cleaner should be installed before exhaust fan

Our machine is typical application include commercial kitchen exhausts, supermarkets, hotels, schools, Air Handling Units (AHUs), factories, workshops, CNC machine shops and many other premises.
Product packaging
Recommend Products
Model No.
Air volume(m3/h)
Filtration efficiency
Power rate(W)
Size(mm)
Flange size(mm)
JW40
4000
98%
48
543*862*702
584*463
JW60
6000
98%
70
823*670*702
392*463
JW80
8000
98%
96
823*862*702
584*463
JW120
2000
98%
140
986*1172*702
894*463
JW160
(horizontal)
16000
98%
192
986*1554*702
1276*463
JW160
(vertical)
16000
98%
192
986*862*1273
584*1033
JW200
20000
98%
280
986*1076*1273
798*1033
JW240
24000
98%
332
986*1172*1273
894*1033
JW280
28000
98%
350
986*1364*1273
1086*1033
JW320
32000
98%
384
986*1556*1273
1278*1033
Company Profile
FAQ
Q: Are you the factory or trading company?
A: We are professional manufacturer, specialized in electrostatic(ESP) air cleaners, Air blowers, Exhaust fans and so on.

Q: Can we visit your factory?
A: Sure.We located in Guangxi province, China. Come by plane or by high-speed rail are both ok, and then we will pick you up.

Q: How long is the quality guarantee of your products?
A: We can offer 1 year quality guarantee and life-long maintenance.

Q: How often shoule we clean the electrostatic air cleaner?
A: Normally 1-2 months, depends on the oil fume volume which attached on the surface.

Q: What is your minimum order quantity?
A: Normally, there’s no MOQ, but as the shipping cost of one piece is very high, so we would suggest more than 5 pcs.


Q: Can you do the OEM and make our own brand?
A: Yes, we can provide OEM&ODM service and also make your own brand on the products.
